Using Radare2

I wanted for a long time to document my workflow with radare2. And decided that now might be the best time. The truth is that I am adjusting into it and have a lot more to learn about this gigantic tool.

---

Goal 🎯

Be able to reverse engineer a sample - starting from a simple binary sample we already know. -> Our candidate will be level01 from the fusion exploit exercises sequence.

---

Using The Cheatsheet 📄

• There is a Cheatsheet online that I will try to utilze while practicing with radare2.
• There is also this online book that I used Radare2-Book

---

r2ghidra Plugin

• Install the ghidra compile into radare2.

  user@ubuntu:~/fusion/level01$ sudo r2pm -ci r2ghidra


---

Command Line Workflow

1. Started by opening the tool with level01 sample:

   user@ubuntu:~/fusion/level01$ r2 ./level01
    -- Control the height of the terminal on serial consoles with e scr.height
   [0x08048b70]>
   [0x08048b70]>


2. Analyzed the sample.

   [0x08048b70]> aaa


3. Usually I would look at what function exist in samples

   0x08048b73]> afl
   0x08048b70    1     33 entry0
   0x08048a60    1      6 sym.imp.__libc_start_main
   ...
   0x08048a50    1      6 sym.imp.strchr
   0x0804997a    1     72 main
   ...


4. I found that the main() was named and so I repositioned to this function to decompile it. ```bash [0x08048b73]> s main [0x0804997a]> pdg

void main(void) { uint fildes;
sym.background_process(“level01”, 0x4e21, 0x4e21); fildes = sym.serve_forever(0x4e21); sym.set_io(fildes); sym.parse_http_request(); return; }

* That way I could start analyzing the binary.

---
## Binary Pattern Searching 🔍💪
* The most beneficial feature I used in `radare2` was the binary pattern matching and searching feature.
* It supports searching for binary patterns with wild cards, creaing structural patterns and also for assembly directives.
* For example, here I show how I look for specific `ROP Gadgets` in the binary code.
```bash
0x08048b70]> /R
...
[0x08048b70]> /x 31..5e
Searching 3 bytes in [0x804b470-0x804b4ac]
hits: 0
Searching 3 bytes in [0x804b2bc-0x804b470]
hits: 0
Searching 3 bytes in [0x8048000-0x804a2bc]
hits: 1
0x08048b70 hit1_0 31ed5e

---

GUI ⁉

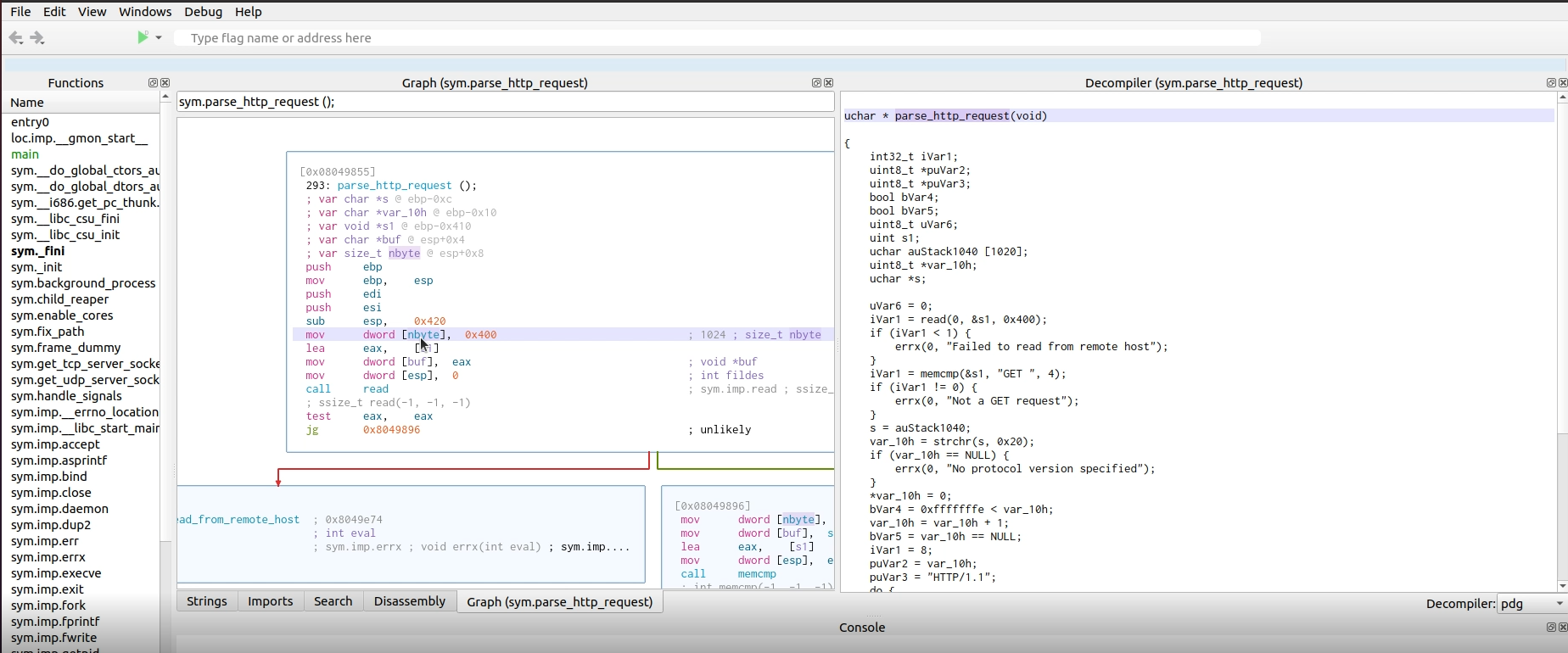

• Well apperently this tool as a pluging called iaito that implements a Graphical User Interface. 🤔
• Install iaito and have a graphic interface with decompiler.

  user@ubuntu:~/fusion/level01$ sudo r2pm -ci iaito
  ...
  user@ubuntu:~/fusion/level01$ iaito ./level01


• And there you go…

---

Summery

This was a rather short post and yet I feel it could be beneficial for someone. I feel that writing this post was very refreshing. It made me think about maintained projects I am using today or have used in the past. The kind of projects you move on after using them once. Well, they tend to keep evolving through time, and maybe I should from time to time check on them. Because who knows, maybe they will come handy on a second iteration. Thanks for reading this post, I really hope it was informative for you.
